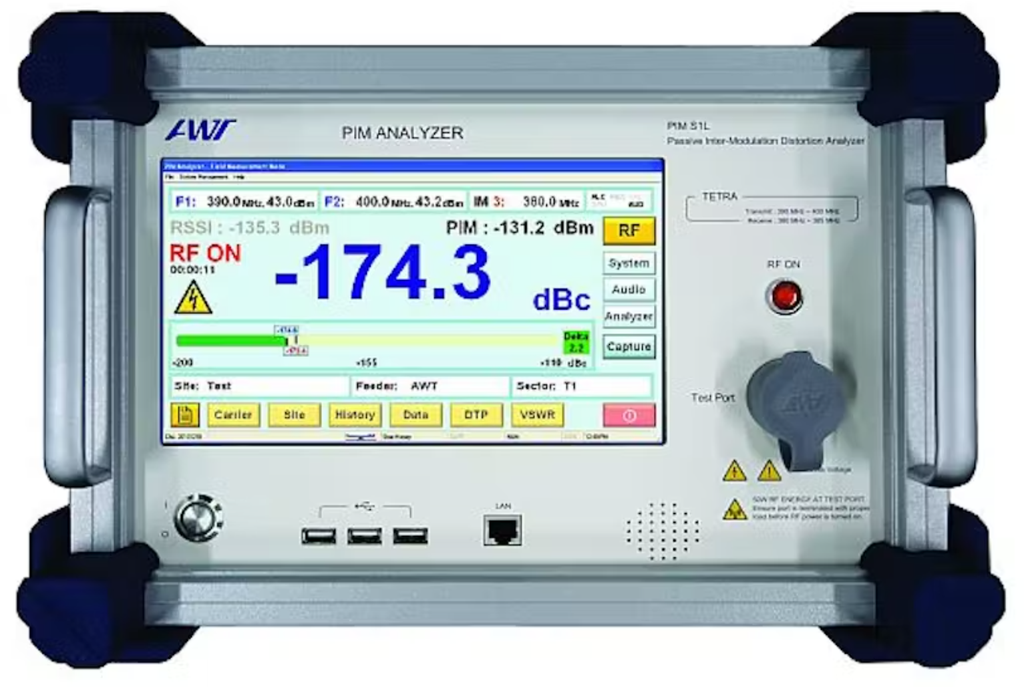

Model cho thuê: PIM S1L
Hãng sản xuất: AWT
Thời gian cho thuê: ngày, tuần, tháng, năm.
Số lượng thuê: Liên hệ 0986393316
PS1L-700U / Dải LTE700-U Tx: 730 ~ 759 / Rx: 776 ~ 788
PS1L-700D / Dải LTE700-L Tx: 728 ~ 759 / Rx: 698 ~ 716
PS1L-850 / Dải CDMA850 Tx: 869 ~ 896 / Rx:824 ~ 851
PS1L-900 / Dải GSM900 Tx: 935 ~ 960 / Rx: 890 ~ 915
PS1L-900E / Dải EGSM900 Tx: 925 ~ 960 / Rx: 880 ~ 915
PS1L-1500 / Dải LTE-JP1500 Tx: 1488 ~ 1520 / Rx: 1456 ~ 1480
PS1L-1800 / Dải DCS/GSM1800 Tx: 1805 ~ 1880 / Rx: 1710 ~ 1785
PS1L-1900 / Dải PCS1900 Tx: 1930 ~ 1990 / Rx: 1850 ~ 1910
PS1L-2100AWS / Dải AWS Tx: 2010 ~ 2155 / Rx: 1710 ~ 1755
PS1L-2000TD / Dải TD-SCDMA(2000) Tx: 2010 ~ 2025 / Rx: 1900 ~ 1920
PS1L-2100UMTS / Dải UMTS/W-CDMA Tx: 2110 ~ 2170 / Rx: 1920 ~ 2060
PS1L-2160JP / Dải W-CDMA-JP Tx: 2150 ~ 2170 / Rx: 2110 ~ 2140
PS1L-2600LTE / Dải LTE2600, IMT-E(2600) Tx: 2620 ~ 2690 / Rx: 2500 ~ 2570
Receiver
Reverse IM -129 dBm / -172 dBc
Noise Floor -138 dBm (300 Hz BW) -132 dBm (1200 Hz BW)
Dynamic Range (typical) 96 dB (ref: -90 dBm)
Reverse Power Protection +43 dBm for 5 sec
Operational Input Power -45 dBm RMS Max
Input Power -10 dBm Measurement Accuracy +/- 2dB @ 2 x 43 dBm
Transmitter
Carrier Power +15 to +44 dBm (46dBm opt)
Power Accuracy +/- 0.35 dB Frequency Accuracy 200 ppm
Reverse Pwr. Protection +43 dBm for 5 sec
Distance to PIM / Distance to VSWR (Option)
DTP Accuracy 0.5 m (typ.) 1.5m
DTF Accuracy 0.5 m
Cable Types Select from list or add new cable types
